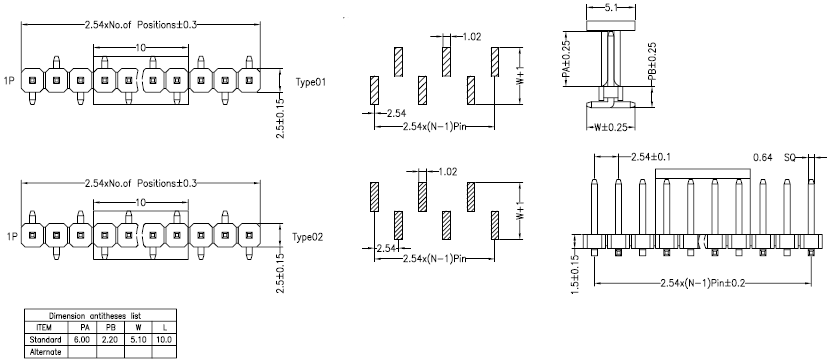

2.54mm Pin Header - H1.5 Single Row SMT - P/N.Y01215-11M-SMT-XP

SPECIFICATIONS:
Rated current: 3.0AMP
Contact resistance: 20mΩ Max
Withstand voltage: 1000V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -40C to +105C
Contact Material: Brass
Contact Plating: Au Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max.Processing Temp: 230C for 30-60 seconds (260C for 5 seconds)

2.54mm Pitch Pin header Connector, with one to four rows of 2 to 80 pins. Available in custom length and pitch. Pins can be configured as straight pin, right angle pin and SMT pin. Packing options include bag, tube, and reel packing, Plating options: gold flash, tin plating.
These connectors are widely used in electronics, electrical appliances, PCB applications, serving as circuit blocker or to isolated circuit. It can function as a bridge, accomplishing he task of current or signal transmission. Typically used as the mate to female header or with electronic wire terminals. Can be independently used for plate and plate connection.
