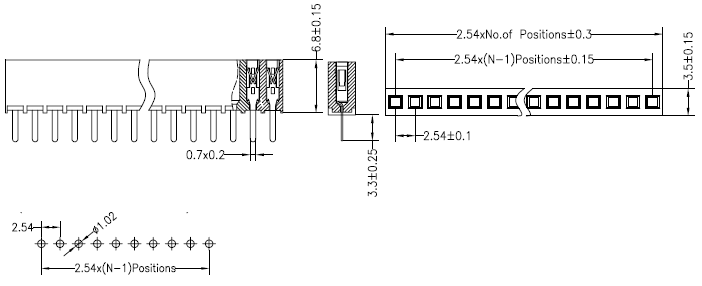

                  H6.8mm Female Header - 4 Side Connect Terminal U Type -Single row - 2.54 Pitch Straight DIP - No.Y02268-1SU-6.8T-XXP

                  SPECIFICATIONS:
                  Rated current: 3.0AMP
                  Contact resistance: 20mΩ Max
                  Withstand voltage: 1000V AC/DC
                  Insulation resistance: 1000mΩ Min
                  Opertion Temperature: -40C to +105C
                  Contact Material: Brass
                  Contact Plating: Au or Sn Over Ni.
                  Insulator Material: Polyester(UL94V-0)
                  Standard: PA6T
                  Max.Processing Temp: 230C for 30-60 seconds (260C for 10 seconds)



                  Material PA6T, Plated GF, Packing Tube or box .



                    Product Information


                  Female headers are widely used in electronics, electrical appliances, PCB configurations and generic connection devices. Female headers mainly have the role of current or signal transmission. Female headers are mated with pin header for use, in Board To Board connections.
                  Pitch characteristics of female headers are 2.54mm and 2.00mm, 1.27mm, 1.00mm, 0.8mm or can be customized as needed. Pin rows range from one to four rows. SMT and DIP (straight / Right angle) uses are common, and customized heights of female header can be produced to accommodate male pin header configurations.
                  Note:  Care must be taken with Insertion of row pins into female header to avoid damage to pins
